Siemens MC2040B1200S 200-Amp 20-Space 40-Circuit Overhead Surface Meter Combination Load Center with Main Breaker
Pickup available at In-Store
Usually ready in 4 hours
PRODUCT DESCRIPTION

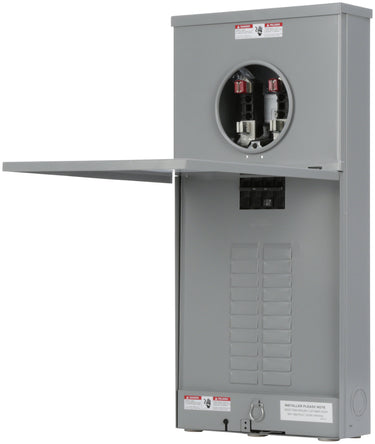

The Siemens MC2040B1200S is a 200-Amp, 20-space, 40-circuit overhead surface meter combination load center with a factory-installed main breaker. Designed specifically for overhead feed applications, this unit features a durable NEMA Type 3R outdoor enclosure that is weather-resistant and suitable for outdoor use. With a 22,000 AIC interrupting rating, it provides reliable protection against electrical faults. The surface-mounted design offers easy installation, and the device includes pad locking provisions for added security. Compatible with RX-type hubs for overhead feed, this load center is UL Listed and meets strict safety standards. Contact your local utility to confirm meter socket approval for your area.
PRODUCT SPECIFICATIONS
-
Suitable for use only as service entrance equipment
-
For Overhead feed applications
-
Outdoor Enclosure: NEMA Type 3R
-
Interrupting Capacity: 22,000 AIC
-
Pad locking provisions included
-
Uses RX-type hubs for overhead feed
-
Surface Mounting
-
UL Listed
-
Dimensions: Height 31.5 in, Width 15 in, Depth 5.3 in
-
Weight: 34 lb
-
Manufacturer: Siemens
-
Model Number: MC2040B1200S
PRODUCT DIMENSIONS
|
Product Length (in.) |
14.5 |
|---|---|
|
Product Width (in.) |
4.5 |
|
Product Height (in.) |
30.41 |
