Siemens MC2442B1200ESV 200-Amp 24-Space 42-Circuit Surface Mount Solar Ready Meter Load Center Combination
Pickup available at In-Store
Usually ready in 4 hours
PRODUCT DESCRIPTION

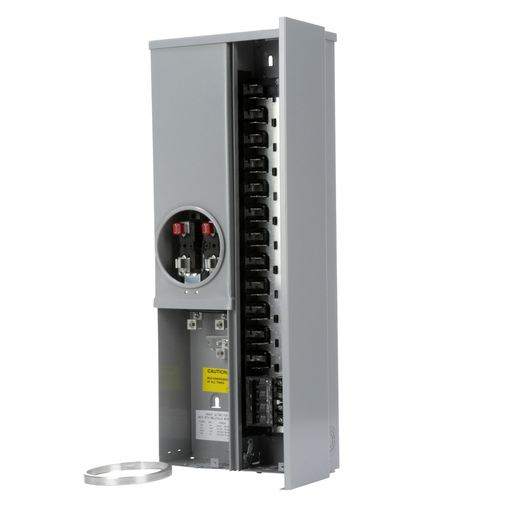

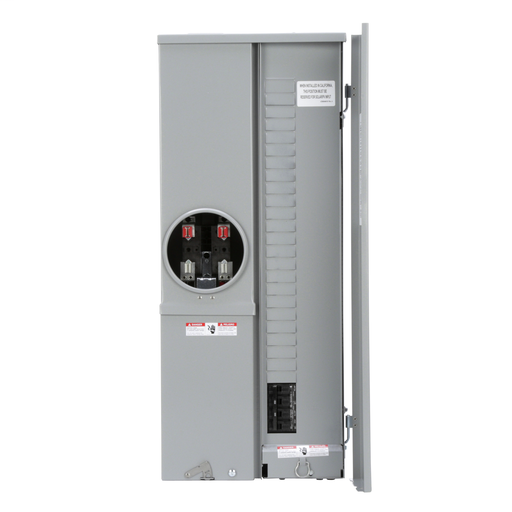

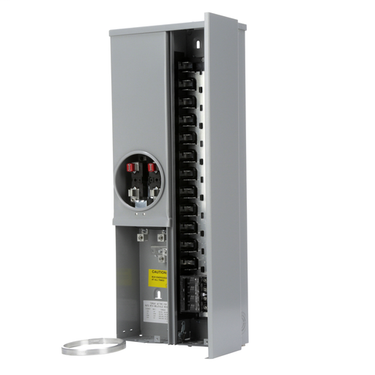

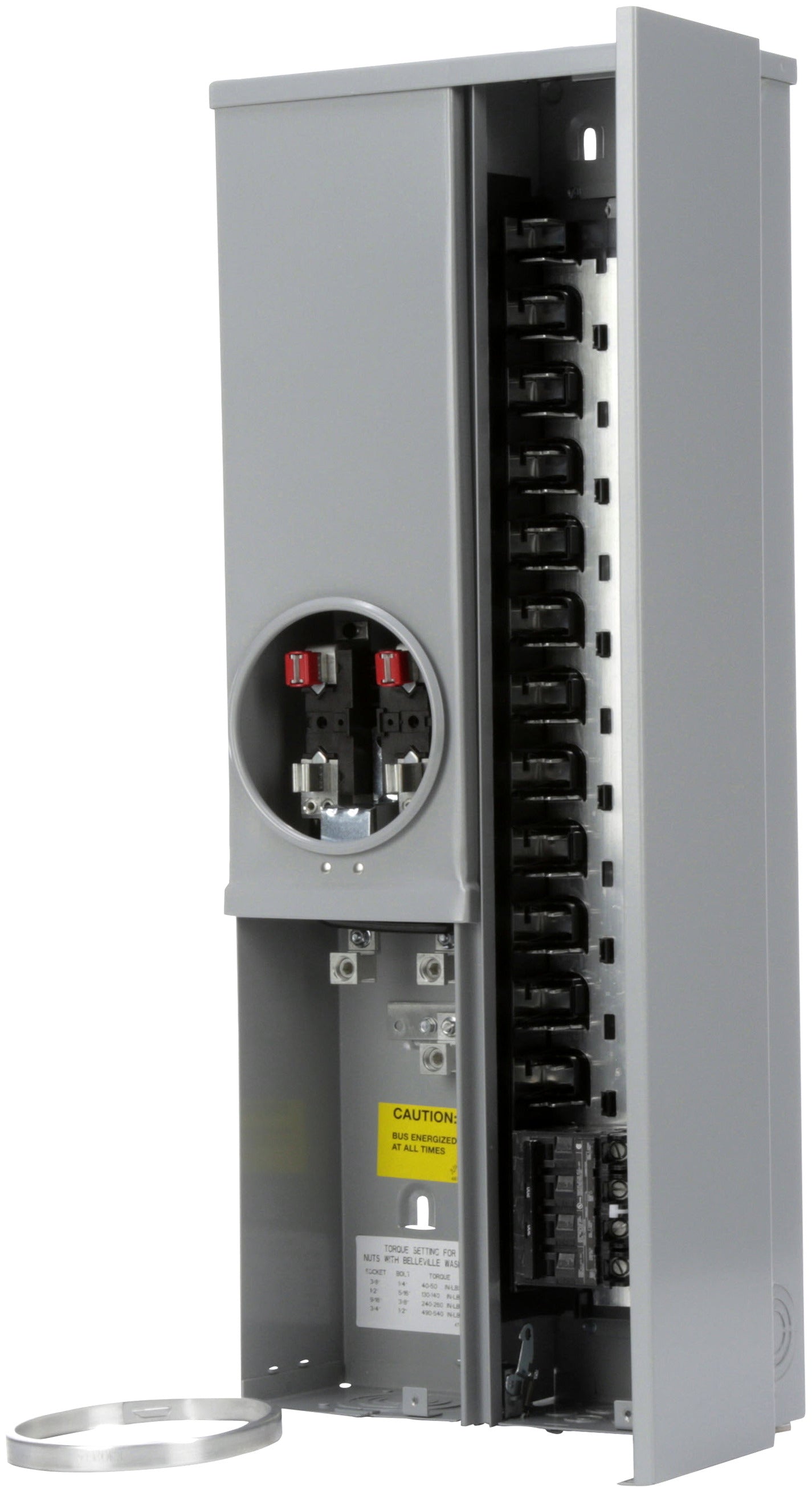

The Siemens MC2442B1200ESV is a 200-Amp, 24-space, 42-circuit surface mount solar-ready meter load center combination, ideal for residential applications requiring solar integration. It includes a factory-installed main breaker and features a 225-amp bus rating with the main breaker located opposite from the reserved solar input. The top two spaces are clearly marked and reserved for up to 70 Amp back-fed solar input, making this unit a great fit for solar-ready installations. Designed for overhead or underground feed (OH/UG), the combination features a 4-jaw meter, ring-type cover, and surface mounting for easy outdoor installation. This unit is EUSERC approved, but always verify with your local utility for meter socket compatibility.
PRODUCT SPECIFICATIONS
-
Factory-installed main breaker
-
24 (1-inch) interior spaces, allowing up to 42 circuits
-
4-jaw meter / 1-phase system rated 200A
-
Solar-ready: top 2 spaces reserved for up to 70A back-fed solar input
-
225 Amp bus rating
-
OH/UG feed
-
Ring-type cover
-
Surface mounting
-
EUSERC approved
-
Weight: 41 lb
-
Model: MC2442B1200ESV
-
Contact utility for meter socket approval
PRODUCT DIMENSIONS
|
Product Length (in.) |
14.34 |
|---|---|
|
Product Width (in.) |
5.44 |
|
Product Height (in.) |
35.1 |
