Siemens SN2020B1100P1 100A 20-Space 20-Circuit Main Breaker Plug-On Neutral Load Center
Pickup available at In-Store
Usually ready in 4 hours
PRODUCT DESCRIPTION

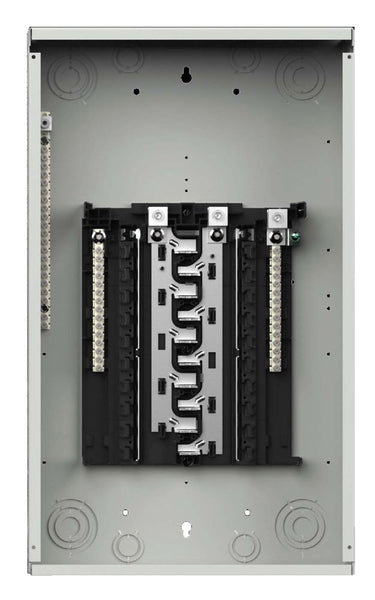

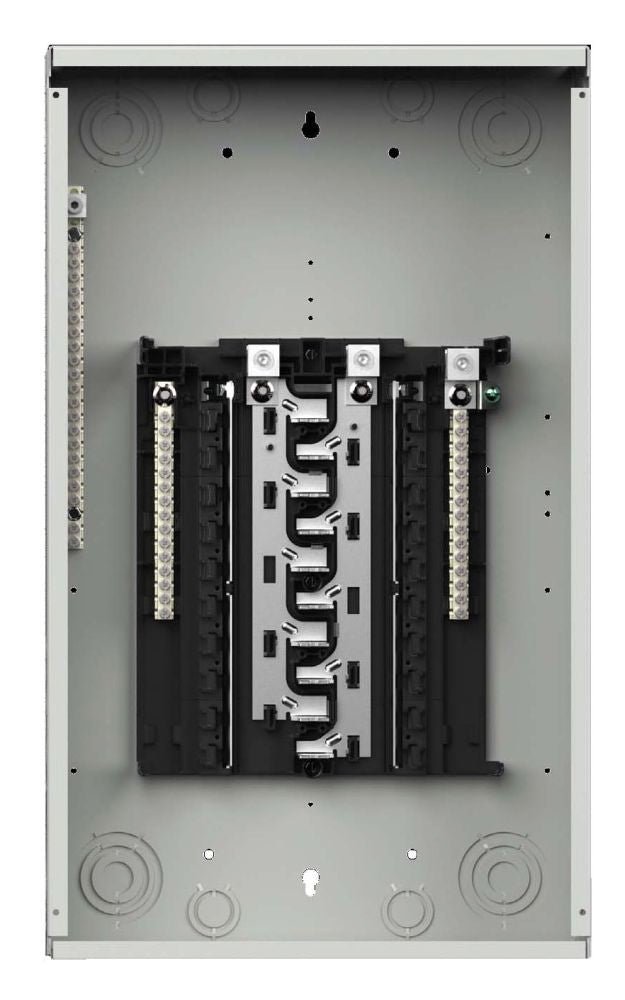

The Siemens SN2020B1100P1 is a high-efficiency 100-Amp, 20-space, 20-circuit main breaker load center engineered for quick installation, value, and reliability. As part of the innovative SN Series, this single-phase, 3-wire indoor unit features a time-saving plug-on neutral design, patented Insta-wire technology, and built-in mounting trim tabs. Designed with a sturdy aluminum bus and a secure NEMA Type 1 enclosure, it offers over 4 inches of wire-bending space for easy wiring. This comprehensive Value Pack includes three Q120 1-pole 20A breakers and one Q230 2-pole 30A breaker, making it an ideal choice for contractors and residential electrical applications.
PRODUCT SPECIFICATIONS
-
MANUFACTURER: SIEMENS
-
MODEL NUMBER: SN2020B1100P1
-
SERIES: SN SERIES
-
BREAKER BOX TYPE: MAIN BREAKER PANEL
-
MAXIMUM AMPERAGE: 100A
-
NUMBER OF SPACES: 20
-
NUMBER OF CIRCUITS: 20
-
VOLTAGE: 120/240V AC
-
INTERRUPT RATING: 22,000 AIC
-
BUS MATERIAL: ALUMINUM
-
CONNECTION TYPE: PLUG-ON NEUTRAL
-
ENCLOSURE / ENVIRONMENT: NEMA 1 (INDOOR)
-
MOUNTING TYPE: FLUSH OR SURFACE MOUNT
-
INCLUDED BREAKERS: (3) Q120 1-POLE 20A & (1) Q230 2-POLE 30A
-
INCLUDED ACCESSORIES: 1 FACTORY-INSTALLED GROUND BAR, GREY TRIM
-
PRODUCT WEIGHT: 27.12 LBS
-
CERTIFICATIONS: UL LISTED
PRODUCT DIMENSIONS
-
PRODUCT LENGTH (DEPTH): 5.00 IN.
-
PRODUCT WIDTH: 15.88 IN.
-
PRODUCT HEIGHT: 25.50 IN.
