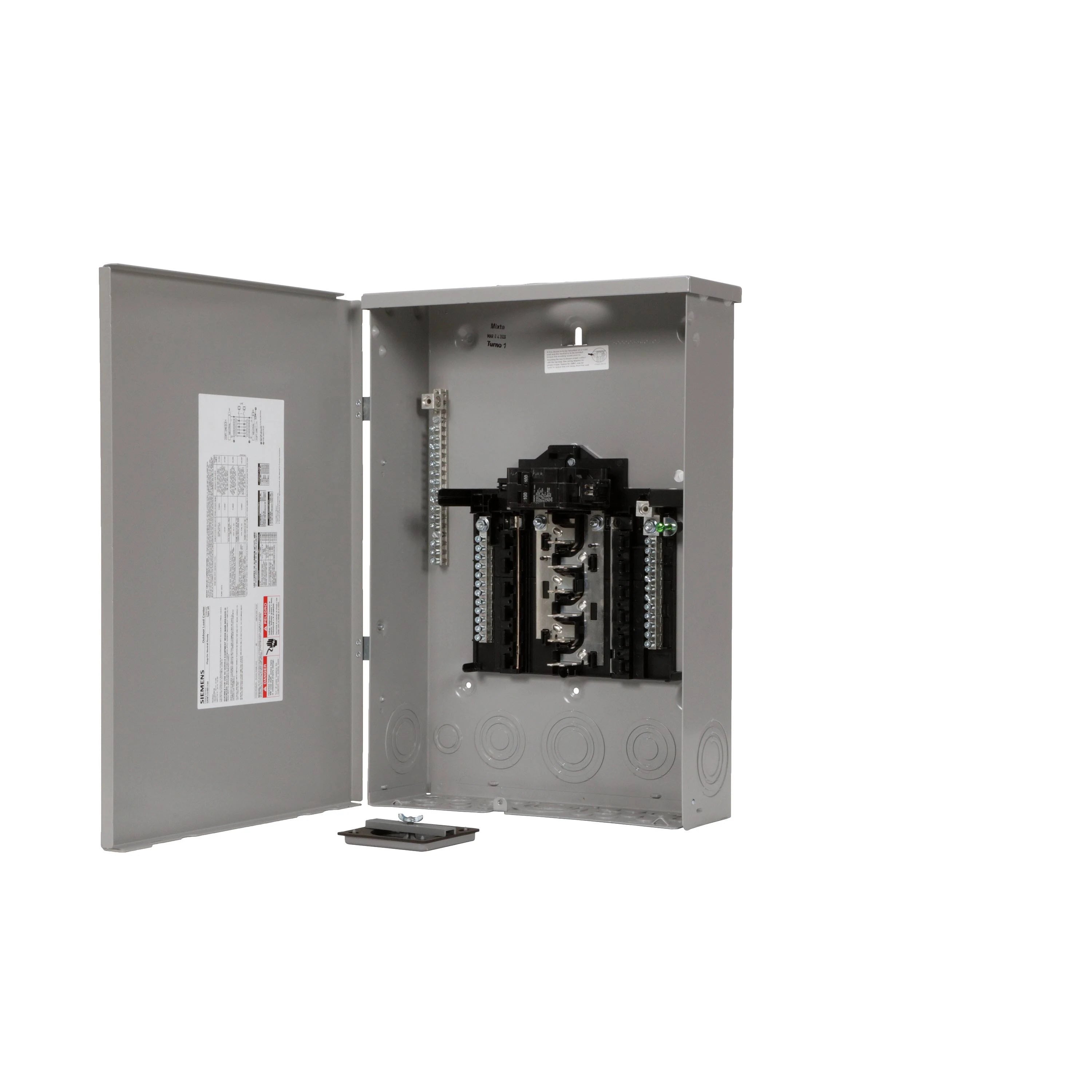

Siemens SNW1224B1100 100A 12-Space 24-Circuit Outdoor Main Breaker Plug-On Neutral Load Center
Pickup available at In-Store
Usually ready in 4 hours
PRODUCT DESCRIPTION
The Siemens SNW1224B1100 is an outdoor-rated 100-Amp main breaker load center designed for dependable power distribution and quick installation. Featuring 12 one-inch spaces that accommodate up to 24 circuits, this single-phase, 3-wire unit operates at 120/240V with a 22,000 AIC interrupt rating. Built with a durable aluminum bus and housed in a weather-resistant NEMA 3R grey enclosure, this plug-on neutral ready panel supports flexible flush or surface mounting for residential and light commercial applications.
PRODUCT SPECIFICATIONS
-
MANUFACTURER: SIEMENS
-
MODEL NUMBER: SNW1224B1100
-
BREAKER BOX TYPE: MAIN BREAKER PANEL
-
MAXIMUM AMPERAGE: 100A
-
NUMBER OF SPACES: 12
-
NUMBER OF CIRCUITS: 24
-
VOLTAGE: 120/240V AC, 1-PHASE, 3-WIRE
-
INTERRUPT RATING: 22,000 AIC (22KAIC)
-
BUS MATERIAL: ALUMINUM
-
CONNECTION TYPE: PLUG-ON NEUTRAL READY
-
ENCLOSURE / ENVIRONMENT: NEMA 3R OUTDOOR RATED
-
MOUNTING TYPE: FLUSH OR SURFACE MOUNT
-
COLOR / FINISH: GREY TRIM
PRODUCT DIMENSIONS
|
Product Depth (in.) |
28.06 in |
|---|---|
|
Product Height (in.) |
4.69 in |
|
Product Width (in.) |
15.75 in |
