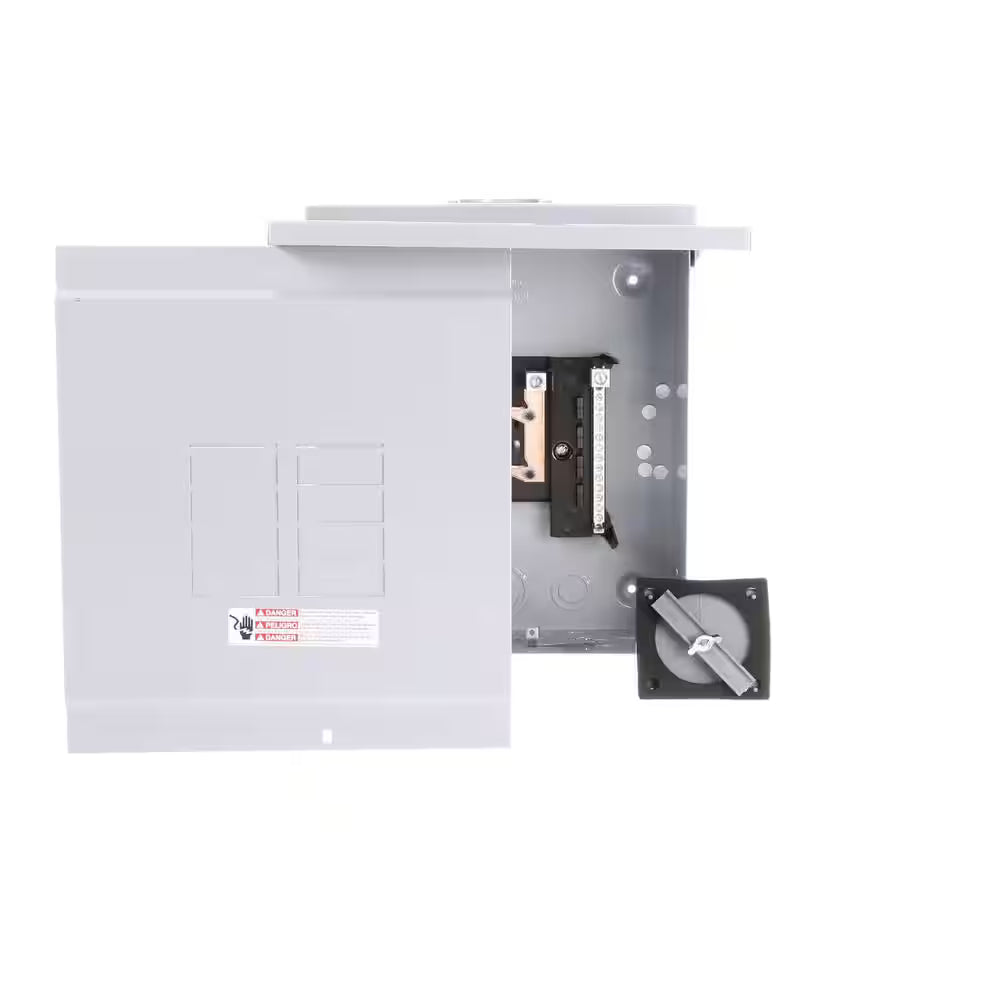

Siemens W0816ML1125CU EQ Series 125A 8-Space 16-Circuit Outdoor Main Lug Load Center

PRODUCT DESCRIPTION

The Siemens W0816ML1125CU is a high-conductivity 125-Amp, 8-space, 16-circuit main lug load center engineered for harsh outdoor environments. Built with a premium 1-piece copper bus bar, this single-phase, 3-wire unit offers superior electrical performance, making it ideal for coastal regions, agricultural farms, and severe conditions. Housed in a weather-resistant NEMA 3R galvanized-steel enclosure with a durable powder-coated finish, it features a removable hinged door for easy access. Designed with Insta-wire technology and a 100,000 AIR interrupt rating, this panel is convertible to a main breaker setup when back-fed with a retainer clip and suitable for use as service entrance equipment.

PRODUCT SPECIFICATIONS

• MANUFACTURER: SIEMENS

• MODEL NUMBER: W0816ML1125CU

• SERIES: EQ SERIES

• BREAKER BOX TYPE: MAIN LUG (CONVERTIBLE TO MAIN BREAKER)

• MAXIMUM AMPERAGE: 125A

• NUMBER OF SPACES: 8

• NUMBER OF CIRCUITS: 16

• VOLTAGE: 120/240V AC, 1-PHASE, 3-WIRE

• INTERRUPT RATING: 100,000 AIR

• BUS MATERIAL: 1-PIECE COPPER

• ENCLOSURE / ENVIRONMENT: NEMA 3R OUTDOOR RATED (G90 GALVANIZED STEEL)

• SPECIAL FEATURES: INSTA-WIRE CONDUCTOR INSTALLATION, REMOVABLE INTERIOR & HINGED DOOR

• HUB TYPE: TYPE HS HUBS (SOLD SEPARATELY)

• SERVICE ENTRANCE: SUITABLE WHEN USED WITH BACK-FED MAIN BREAKER

• CERTIFICATIONS: UL LISTED, ANSI CERTIFIED

PRODUCT DIMENSIONS

• PRODUCT LENGTH (DEPTH): 15.50 IN.

• PRODUCT WIDTH: 13.00 IN.

• PRODUCT HEIGHT: 5.25 IN.
