Siemens WEPK4411 400A 4 Gang 1PH 125A 4J Ring Type EUSERC
Pickup available at In-Store
Usually ready in 4 hours
PRODUCT DESCRIPTION

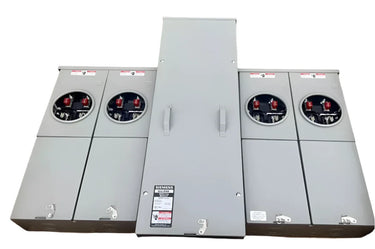

The Siemens WEPK4411 400A 4 Gang Meter Socket is a heavy-duty, EUSERC-compliant metering solution designed for multi-tenant residential or light commercial service entrances. Featuring four ring-type meter sockets, this UL-listed unit supports single-phase, 3-wire systems with a maximum bus rating of 400 amps. Each meter socket supports continuous loads up to 125 amps, while the entire panel is rated for a 100,000 AIC. Engineered to meet rigorous utility requirements, this durable panel provides a reliable solution for utility metering applications, combining robust construction with easy installation and code compliance.
PRODUCT SPECIFICATIONS
-
MANUFACTURER: SIEMENS
-
MODEL NUMBER: WEPK4411
-
MAX. BUS RATING: 400A
-
MAX. METER SOCKET RATING: 125A CONTINUOUS
-
MAX. BRANCH RATING: 125A
-
AIC RATING MAX: 100,000
-
METER POSITIONS: 4
-
VOLTAGE: 120/240 V~, 1 PHASE, 3 WIRE
-
RING TYPE SOCKET CONFIGURATION
-
EUSERC COMPLIANT
-
UL LISTED
-
WEIGHT: 113 LB
PRODUCT DIMENSIONS
Product Length(in.) |
47.51 |
---|---|
Product Width (in.) |
7.56 |
Product Height (in.) |
40.06 |
