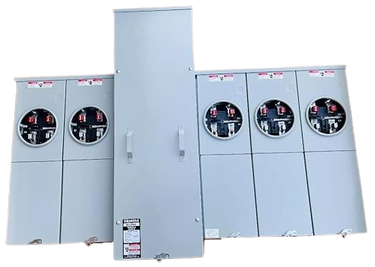

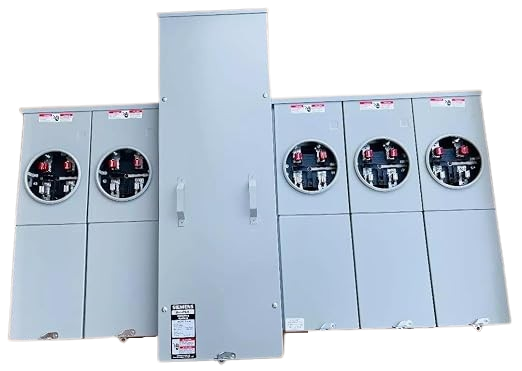

Siemens WEPK4511 400-Amp 5-Gang 1-Phase Uni-PAK Meter Main Combo
Pickup available at In-Store
Usually ready in 4 hours
PRODUCT DESCRIPTION
The Siemens WEPK4511 is a high-performance 400-Amp, 5-gang, 1-phase meter main combo engineered specifically for multi-family residential housing and small commercial metering applications. Built to satisfy rigorous NEC 2020 and EUSERC standards, this versatile Uni-PAK metering unit features a robust 400A main bus rating capable of supporting five 125A tenant positions.
Each position is configured with 4-jaw, ring-type meter sockets utilizing a secure no-bypass design. Operating seamlessly on 120/240V, 3-wire systems, the WEPK4511 simplifies multi-tenant power distribution while delivering high-capacity fault protection and long-term durability in demanding outdoor environments.
PRODUCT SPECIFICATIONS
-
Manufacturer: Siemens
-
Model Number: WEPK4511
-
Max Bus Rating: 400A
-
Max Meter Socket Rating: 125A Continuous
-
Max Branch Rating: 125A
-
Meter Positions: 5-Gang
-
Socket Type: 4-Jaw Ring Type (No Bypass)
-
System Voltage: 120/240V AC, 1-Phase, 3-Wire
-
Enclosure / Service Feed: NEMA 3R Outdoor Rated, Top or Bottom Feed
-
Compliance & Certifications: NEC 2020 & EUSERC Certified
-
Product Weight: 137.28 lbs
PRODUCT DIMENSIONS
-
Product Length: 37.40 in.
-
Product Width: 55.91 in.
-
Product Height: 8.27 in.
