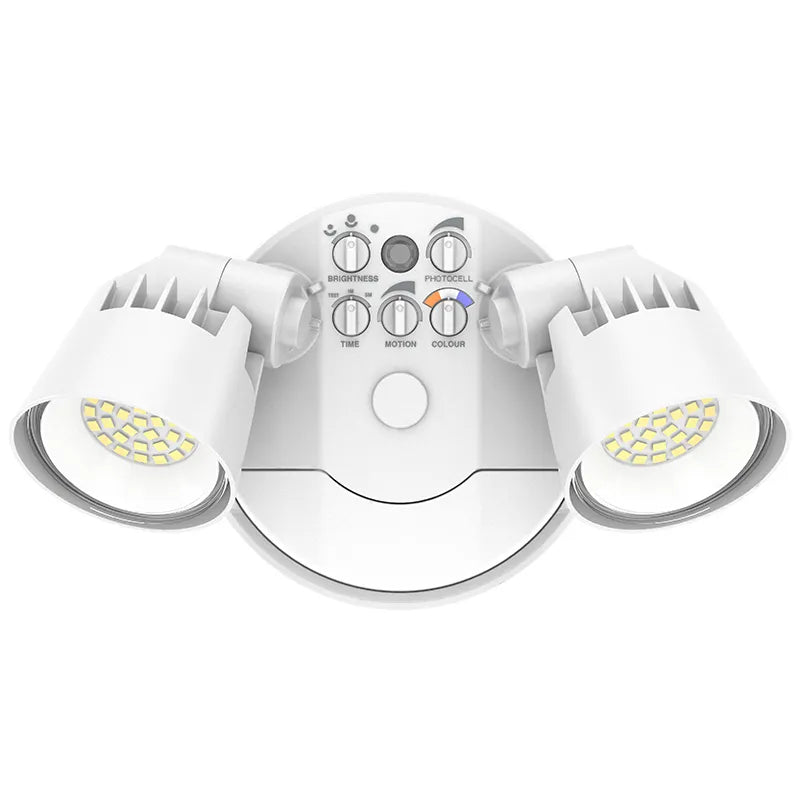

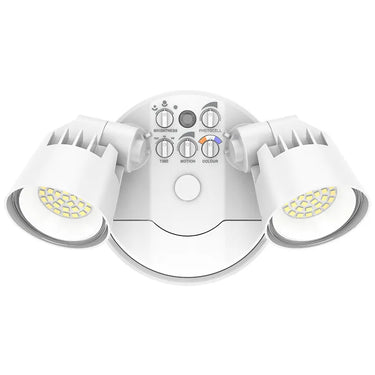

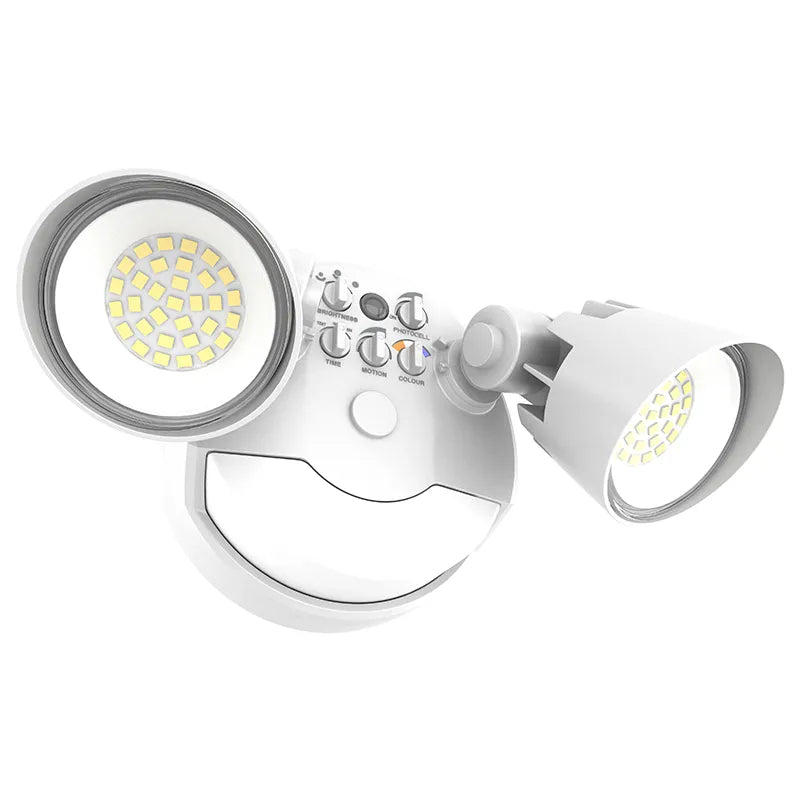

Westgate SLX-2H-MCTP-WH-P LED Flood Light with PIR & Photocell

PRODUCT DESCRIPTION

The Westgate SLX-2H-MCTP-WH-P LED Security Flood Light combines high-efficiency illumination with advanced motion detection and customizable settings. Featuring selectable wattage (16W/25W) and CCT options, this versatile fixture adapts to any outdoor security or accent lighting need. The integrated dusk-to-dawn photocell ensures automatic operation, while the built-in PIR motion sensor offers precise detection with adjustable hold time and sensitivity.

Crafted from durable die-cast aluminum with a powder-coated finish, the SLX-2H-MCTP-WH-P is engineered to withstand harsh weather, boasting IP-rated waterproofing and a 7-year warranty. Additional features like adjustable brightness (1%–100%), ambient light modes, and TRIAC dimming provide complete control over your lighting environment.

PRODUCT SPECIFICATIONS

• Manufacturer: Westgate

• Model/SKU: SLX-2H-MCTP-WH-P

• Voltage: 120V AC, 50/60Hz

• Wattage: Selectable 16W / 25W

• Power Factor: >0.9

• Efficacy: 130 lm/W

• Material: Die-cast aluminum, powder coated

• Waterproofing: IP-rated, suitable for wet locations

• Photocell: Integrated dusk-to-dawn, adjustable sensitivity

• Brightness Control: Adjustable 1%–100% via canopy switch

• Ambient Light Modes:

  1. Low brightness without ambient light

  2. Full brightness without ambient light

  3. Low brightness with ambient light

• Motion Sensor: PIR motion detection with adjustable hold time & sensitivity

• Sensor Specs: True PIR technology, 180° detection angle, up to 46 ft detection radius, supports mounting heights up to 8.2 ft

• Color Temperature (CCT): 3000K / 4000K / 5000K

• Operating Temperature: -40°F to 104°F

• Dimming: TRIAC dimming compatible

• Warranty: 7 years
